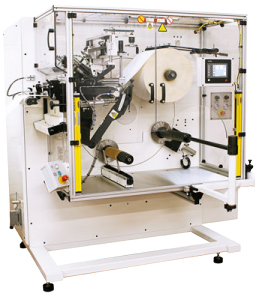

VECTRA HDTR 330/430/530
The HDTR has been specifically designed to rewind large diameter rolls and heavy duty substrates.
The turret can be operated in two modes, 4 spindle or 2 spindle mode, allowing rolls to be rewound with a finished diameter of 350mm in 4 spindle mode and 500mm in 2 spindle mode.
A large variety of core sizes are available from 25mm to 150mm. The HDTR allows continuous production of heavy duty substrates and large quality rolls to be produced inline or offline.
Specification
| Maximum roll diameter: | 500mm |
| Web width: | 330mm or 430mm or 530mm |
| Air mandrels: | 4 off at 76mm (standard) |
| Maximum web speed: | 100 m/min with 25-38mm |
| 150 m/min with 40-150mm | |
| Constant torque tension control | |
| Web dividers: | 6 (5 lanes) |
| Counter: | labels and meters |
| Touch screen H.M.I | |
| Auto roll eject mechanism | |
| Adjustable core stop | |
| Many more options on requests |
